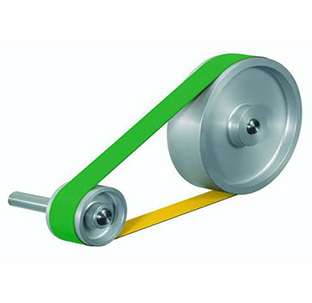

Flat Power Transmission Belts
FLAT BELTS cover a complete range from fractional KW to 2000 KW drives, with nylon thickness ranging from 0.2mm to 4 mm & laminated with friction covers Leather, High NBR, X-NBR or Fabric, suitable for most required conditions.

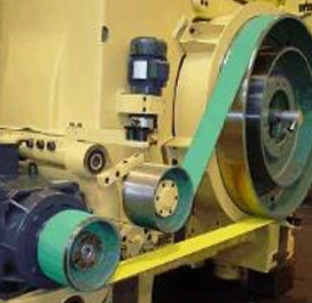

We provides highly efficient, transmission of power for machines such as Gangsaws & Polishers. The modified P Line is based upon the earlier standard belt construction with a tension membrane of highly oriented polyamide sheet & is equipped with new elastomer friction coatings. The P line has better tracking properties, dimensional stability & flexibility thanks to the modification to its polyamide tension member. This increases the service life & reduces susceptibility to failures
Belt Types: LT, LL, LT, GG, GT, TT
| Type | Total Thickness | d min (MM) | Nominal effective Pull N/mm Width | Max. Transmittable Pull | Wight Kg/m2 |
|---|---|---|---|---|---|
| P LINE | |||||
| LT 10 | 3.0 | 40 | 10 | 12.5 | 2.1 |
| LT 14 | 3.2 | 60 | 14 | 17.5 | 2.4 |
| LT 20 | 3.6 | 110 | 20 | 25 | 2.6 |
| LT 28 | 4.0 | 200 | 28 | 35 | 3.6 |
| LT 40 | 4.7 | 280 | 40 | 48 | 4.0 |
| LT 54 | 5.5 | 380 | 54 | 67.5 | 5.4 |
| LT 80 | 7.0 | 560 | 80 | 110 | 7.1 |
| LT 6 | 4.4 | 40 | 6 | 7.5 | 3.0 |
| LT 10 | 4.6 | 50 | 10 | 12.5 | 3.0 |
| LT 14 | 4.8 | 70 | 14 | 17.5 | 3.2 |
| LT 20 | 5.1 | 120 | 20 | 25 | 4.2 |
| LT 28 | 5.6 | 220 | 28 | 35 | 5.0 |
| LT 40 | 6.2 | 320 | 40 | 48 | 6.0 |
